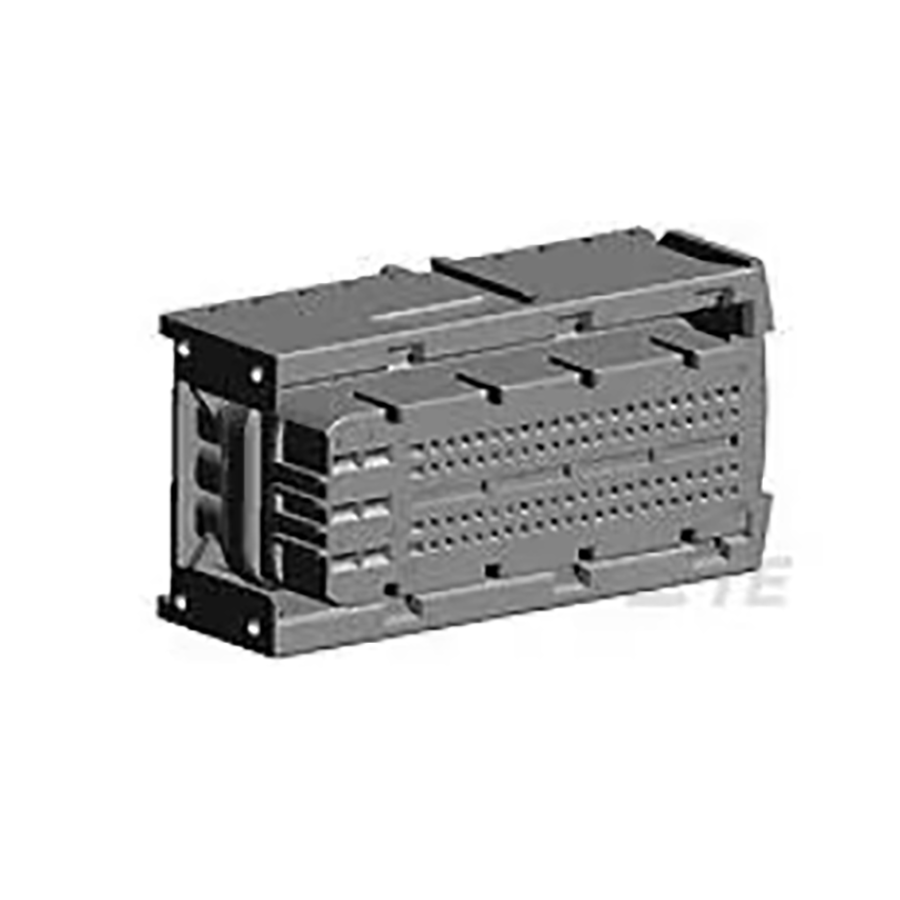

3-1355136-3

Manufacturer:

TE Connectivity

Mfr.Part #:

3-1355136-3

Datasheet:
Description:

Automotive Connectors Cable Accessory Type:Receptacle Housing Number of Positions:94 Female

ParameterValue
Length85.3 mm
Width36.5 mm
TerminationCrimp
Max Operating Temperature248 °C
Min Operating Temperature-40 °C
Height43 mm
PackagingBulk
Voltage Rating12 V
Radiation HardeningNo
RoHSCompliant
Pitch2.5 mm
Flammability RatingUL94HB
OrientationStraight
Lifecycle StatusProduction (Last Updated: 2 weeks ago)
ColorBlack
GenderFemale
Number of Contacts94
ELVCompliant
Body MaterialPBT
Number of Positions94
Number of Rows4
Row Spacing2.9972 mm
Housing MaterialPolybutylene
Circuit ApplicationSignal
Housing ColorBlack
Mating Tab Width2.794 mm
Schedule B8536695050
Manufacturer Lifecycle StatusACTIVE (Last Updated: 2 weeks ago)
PolarizedYes
Hybrid ConnectorYes
ServiceableYes
Accessory TypeReceptacle Housing

Stock: 17

Distributors
pcbx
Unit Price$5.26294
Ext.Price$5.26294
QtyUnit PriceExt.Price
1$5.26294$5.26294
10$4.47470$44.74700
25$4.19257$104.81425
50$3.99252$199.62600
100$3.74909$374.90900
300$3.52050$1056.15000
500$3.30585$1652.92500
1000$3.10425$3104.25000
